Extruded Heat Sink Capability

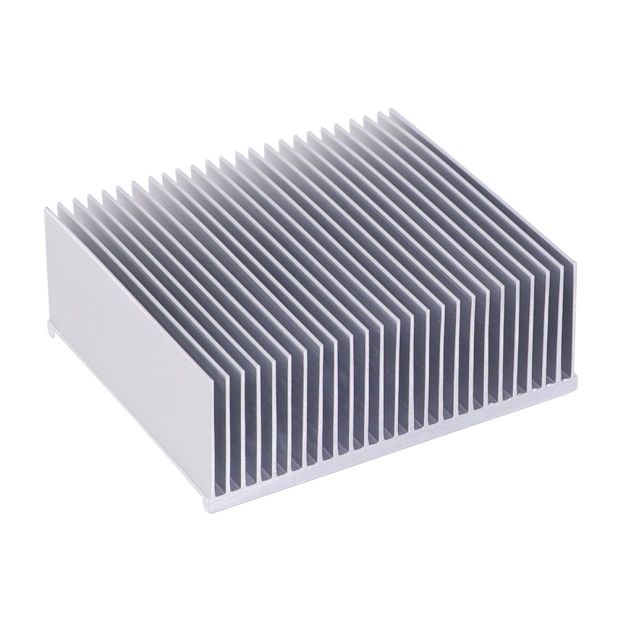

Extruded heat sink (also known as heat sink extrusion or extruded aluminum heat sink) is renowned for its beautiful appearance, lightweight design, excellent heat dissipation performance, and energy-saving benefits. The extrusion process involves heating aluminum ingots to 520~540℃ and forcing the molten aluminum through a custom grooved mold, followed by cutting and finishing to form the final product.

AL6063 is our commonly used aluminum material, offering good thermal conductivity and machinability. Leveraging years of technical experience and optimized production processes, ALVC combines high-thermal-conductivity aluminum alloy profiles to develop customized extruded heat sinks, meeting customers' demands for differentiation, specialization, and personalization. The surface of our extruded heat sinks is anodized to enhance corrosion resistance, wear resistance, and aesthetics.

We cooperate with top aluminum extruders to ensure product quality. Extruded aluminum heat sinks are basic units in thermal management systems, and can be combined with high-thermal-conductivity materials such as heat pipes to solve more complex heat dissipation challenges. They are widely used in machinery, automobiles, wind power, construction machinery, air compressors, railway locomotives, household appliances, and other industries, with common types including electronic heat sinks, computer heat sinks, sunflower heat sinks, and power semiconductor heat sinks.
