Liquid Cooling Plate (LCP)
Product description
Professional Thermal Management Solution
What is a Liquid Cold Plate?
A liquid cold plate is a high-efficiency thermal management device engineered to cool electronic equipment and high-heat-load components. It features a precision-machined housing with internal channels—designed to allow coolant (such as water) to flow seamlessly—paired with a welded cover that seals the channels for leak-proof operation. How does a liquid cold plate work? Coolant circulates through the flat, metal plate’s internal channels, absorbing heat directly from the heat-generating components it contacts. As the coolant flows through the system, it efficiently transfers the absorbed heat away from the equipment, maintaining optimal operating temperatures and preventing overheating.
Most liquid cold plates are constructed from aluminum, though copper is also a common material choice. Both metals are preferred for their exceptional thermal conductivity—a critical property that ensures fast, effective heat transfer and maximizes the liquid cold plate’s cooling performance.

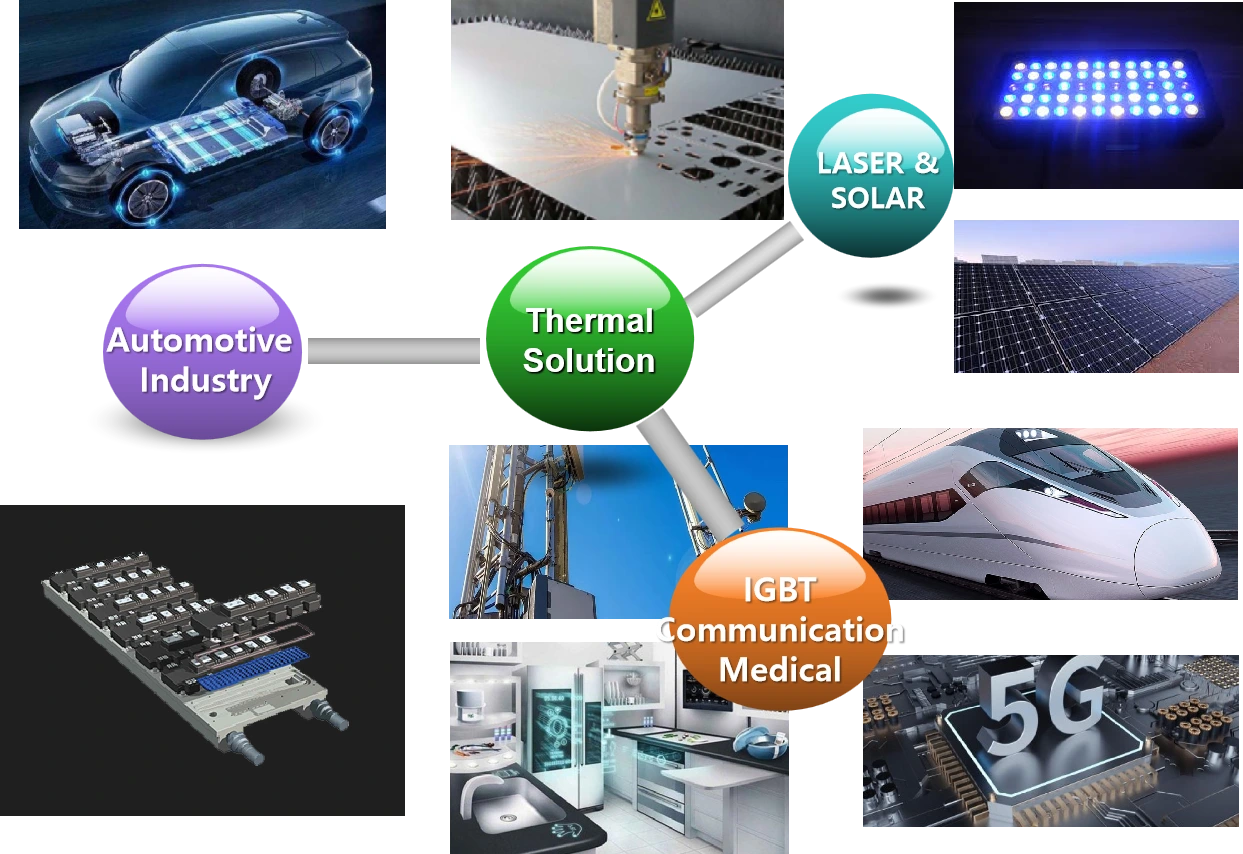

Liquid cold plates are essential for custom thermal management solutions in industries where precise, reliable equipment cooling is non-negotiable. Key applications include rail, wind energy, solar energy, aerospace, space, data centers, military, computing, lasers, and telecommunications equipment.
Liquid coolingPlate advantage
Compare with air, Liquids have a much higher heat capacity so can remove more heat from the heat element.
Compare with air, Liquids have a much higher thermal conductivity so can more efficiently transfer heat away from the heat element.
By using a closed-loop system, the liquid can be circulated and cooled by a chiller or other external cooling device, making it possible to maintain very low temperature.
Because there is no need for large fans. The size and weight of liquid cooling plates is often smaller than air-cooled systems
By using antifreeze ethylene glycol and water and Propylene Glycol and Water (PGW) when dealing with low temperature environments, Liquid cooling plates will avoid icing problems.
Liquid cooling plates can increases the length of the cooling circuit path to enhance the cooling capacity
What type of liquid cooling plates we make?
With mature technology and rich experience, we can design high-efficiency liquid cooling plates through special micro ports extrusion, friction stir welding, vacuum brazing techniques, combined with simulation and your technical parameters. All of these options are based on your own cooling situation and requirements. With our strong manufacturing capabilities, we can deliver high-quality mass production to you.
Types of Liquid Cooling Plates We Manufacture | Professional Custom Solutions
With mature manufacturing technology and decades of industry experience, we specialize in designing and producing high-efficiency liquid cooling plates tailored to your unique technical requirements. Our production process integrates advanced technologies such as special micro-port extrusion, friction stir welding (FSW), vacuum brazing, and professional thermal simulation analysis. We strictly adhere to your cooling scenarios and performance indicators to provide customized solutions, and our strong mass production capacity ensures high-quality, on-time delivery for global clients.
We offer a full range of liquid cooling plate types, each optimized for specific applications, materials, and performance needs. Below is a detailed introduction to our core products:

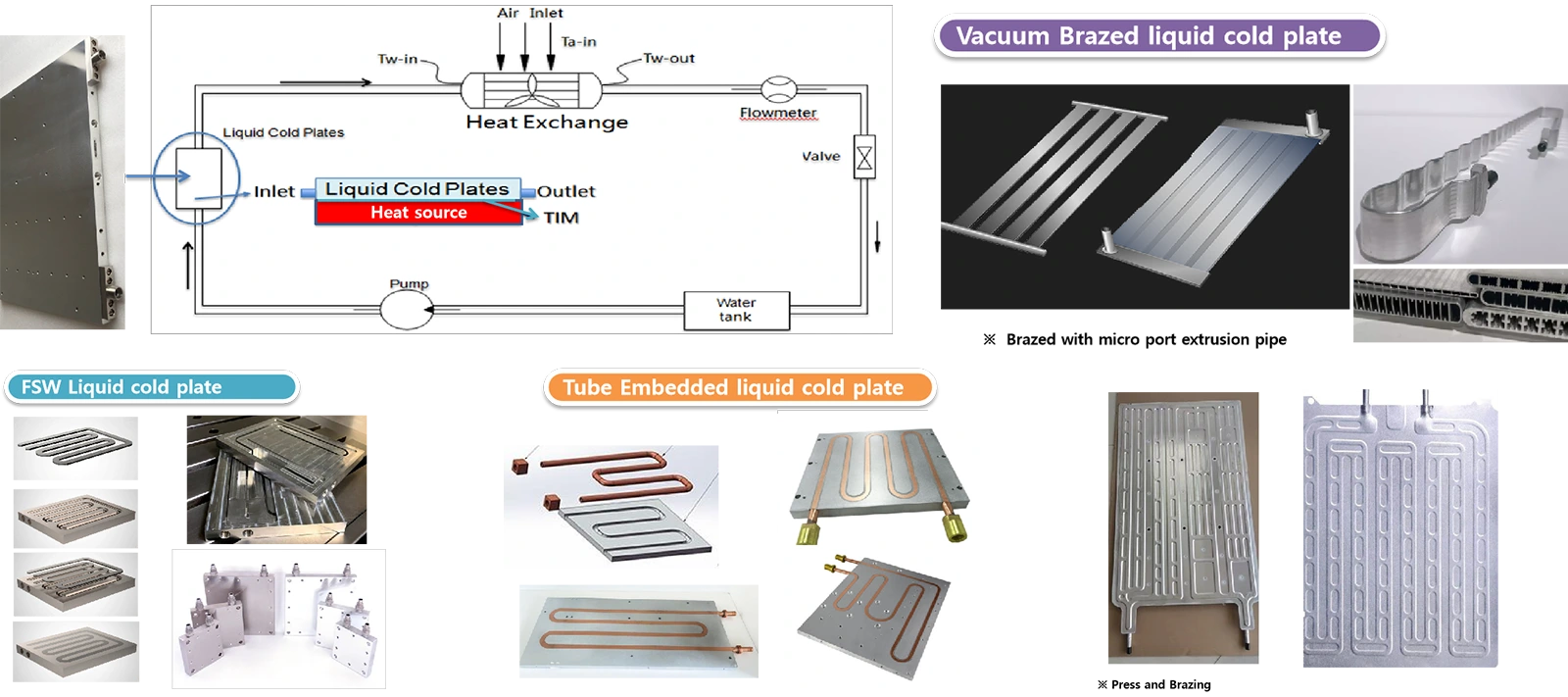

1. Friction Stir Welded (FSW) Liquid Cold Plate
Manufacturing Process
First, the flow channel plate is precision-machined with custom flow channels using CNC equipment. Then, the flow channel plate is seamlessly welded to the upper cover plate via friction stir welding (FSW) technology, ensuring structural integrity and leak-proof performance.
Key Features
- Cost-effective solution for medium to high-volume production, reducing overall manufacturing costs compared to traditional welding methods.
- All-in-one hybrid equipment integrates welding and machining functions, significantly shortening the production cycle and improving production efficiency.
- Wide material compatibility: suitable for all aluminum alloys, as well as high-strength aluminum and cast aluminum materials.
- Versatile welding capabilities: can weld all copper alloys, and also realize dissimilar material welding between aluminum and copper.
- Flexible cooling geometry design: allows customized flow channel shapes to target specific heat-generating areas of the application, unlike drilling which only supports straight flow channels.
- High welding strength and good sealing performance, effectively preventing coolant leakage even under high pressure and high temperature conditions.
Typical Applications
Ideal for high-power chips such as IGBT modules, CPUs, and lidar systems, where precise and efficient heat dissipation is critical for stable operation.
2. Brazed Liquid Cold Plate
Manufacturing Process
The flow channel plate is processed by CNC machining or stamping forming according to the design drawings, and then the flow channel plate is brazed with the upper cover plate in a vacuum environment. This process ensures uniform welding, high bonding strength, and excellent thermal conductivity.
Key Features
- Suitable for large-size liquid cooling plates and mass production, with high production efficiency and stable product consistency.
- Excellent thermal conductivity: the brazed joint has high thermal conductivity, ensuring rapid heat transfer between the heat source and the coolant.
- Compact structure: the welding seam is thin and flat, reducing the overall thickness of the cold plate and saving installation space.
- Flexible flow channel design: can be customized according to the heat dissipation requirements, supporting complex flow channel layouts to optimize heat dissipation efficiency.
- High reliability: the brazed joint is firm and not easy to crack, ensuring long-term stable operation in harsh working environments.
Typical Applications
Widely used in battery cooling systems such as Battery Energy Storage Systems (BESS), electric vehicles (EV), and solar energy storage batteries, as well as industrial equipment requiring large-area heat dissipation.
3. Liquid Cold Plate with Embedded Copper/Stainless Steel Tubes
Manufacturing Process
First, the base plate is precision-machined with flow channel grooves of the designed shape using CNC equipment. Then, copper or stainless steel tubes are embedded into the grooves, and epoxy resin adhesive is used for fixing and sealing, ensuring tight bonding between the tubes and the base plate.
Key Features
- Strong corrosion resistance: copper or stainless steel tubes are resistant to corrosion from coolants such as seawater, tap water, and chemical coolants, suitable for harsh cooling environments.
- Long service life: the embedded tube structure is stable, not easy to age or damage, and can maintain stable performance for a long time.
- Excellent adaptability to harsh natural environments: can withstand extreme temperatures, humidity, and vibration, suitable for outdoor and marine applications.
- Good thermal conductivity: copper tubes have excellent thermal conductivity, ensuring efficient heat transfer; stainless steel tubes are suitable for high-temperature and high-pressure working conditions.
- Easy maintenance: the embedded tube structure is easy to inspect and maintain, reducing the cost of later maintenance.
- Customizable tube materials and sizes: can choose copper or stainless steel tubes of different specifications according to the cooling requirements and working environment.
Typical Applications
Suitable for marine equipment, offshore wind power generation systems, industrial equipment using corrosive coolants, and outdoor electronic equipment requiring long-term stable operation.
4. Skived Fin Micro-Channel Liquid Cold Plate
Manufacturing Process
The base plate is processed with high-precision skived fins using skiving technology, and then the upper cover plate is vacuum brazed with the base plate. The skived fins form dense micro-channels, which greatly increase the heat exchange area and improve heat dissipation efficiency.
Key Features
- Specialized for GPU and CPU cooling: designed for high-power electronic components, with heat dissipation capacity up to several kilowatts, meeting the extreme heat dissipation needs of high-performance chips.
- Full copper material: adopts high-purity copper for the base plate and fins, which has excellent thermal conductivity and ensures rapid heat transfer.
- Extremely strict requirements on tolerance and flow resistance: the micro-channels are processed with high precision, ensuring uniform flow of coolant and stable heat dissipation performance.
- Dense micro-channel structure: the skived fins form ultra-fine micro-channels, which significantly increase the heat exchange area and improve heat dissipation efficiency.
- Low flow resistance: optimized micro-channel design reduces coolant flow resistance, saving energy consumption of the cooling system.
- Compact size: the micro-channel structure is compact, saving installation space and suitable for high-density electronic equipment.
Typical Applications
High-performance computing (HPC) equipment, gaming servers, data center servers, and other electronic equipment requiring high-efficiency heat dissipation for GPUs and CPUs.
5. Gun Drill Liquid Cold Plate
Manufacturing Process
Deep drilling technology is used to process straight flow channels in the aluminum plate, and then the two ends of the flow channels are connected with pipelines to form a closed cooling loop, ensuring the circulation of coolant.
Key Features
- Simple manufacturing process: compared with other processes, deep drilling has lower technical difficulty, shorter production cycle, and lower manufacturing cost.
- Cost-effective: suitable for small to medium batch production, reducing the cost of customized cooling solutions.
- Suitable for environmentally friendly working conditions: compatible with non-corrosive coolants such as deionized water, ensuring environmental protection and safety.
- Limited design freedom: the liquid flow channels are only straight lines, which cannot be customized into complex shapes, limiting the targeted cooling of specific heat-generating areas.
- Processing limitations for long plates: for cooling plates longer than 500 mm, deep drilling in aluminum plates becomes very difficult, affecting processing accuracy and efficiency.
- Leakage-sensitive seams: the connection seams between the pipelines and the flow channels are sensitive areas, requiring strict sealing treatment to prevent coolant leakage.
Typical Applications
Suitable for low-power electronic equipment, simple industrial cooling systems, and applications with low heat dissipation requirements and limited budget.
Why Choose Our Liquid Cooling Plates?
We combine advanced technology, strict quality control, and customized services to provide you with high-performance liquid cooling solutions. Our products are widely recognized by global clients in the fields of new energy, electronics, industrial equipment, and more. We adhere to the concept of "quality first, customer-oriented", and provide one-stop services from design, prototyping to mass production, ensuring that your cooling needs are fully met.
Contact us today to discuss your custom liquid cooling plate requirements and get a professional quote.
