Loop Thermosyphon
heat pipe
Attachment Download：
Product description
Introduction of Thermosiphon
Working Mechanism of Thermosiphon Cooling system
Phase Change Technology : Gravity of Liquid
Working Mechanism :

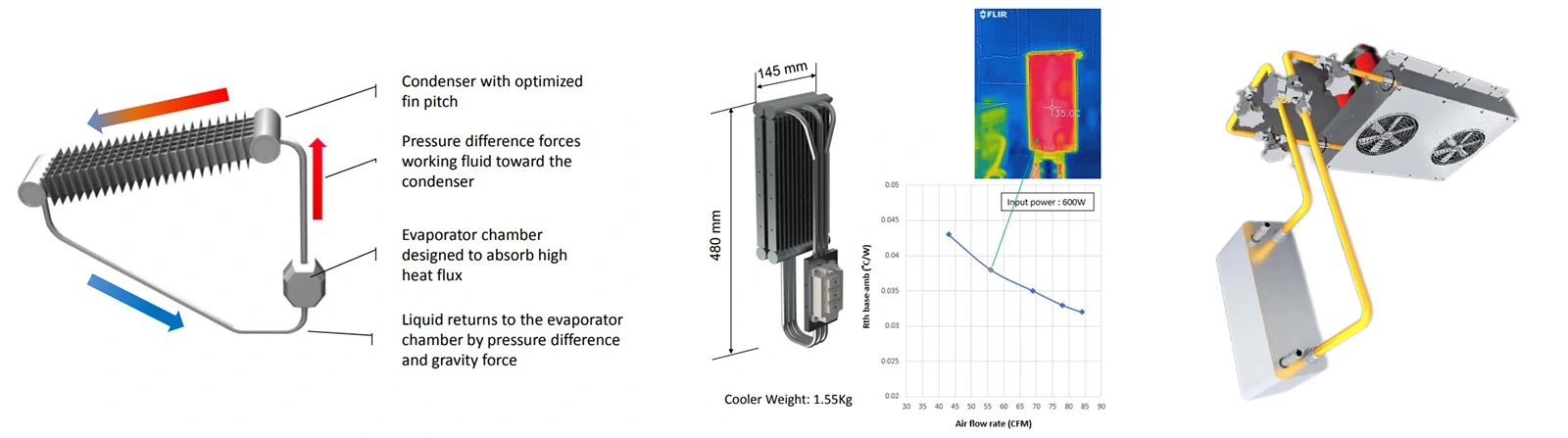

Thermosiphon cooling heat sink module involves four components in a loop: an evaporator with a boiling enhancement structure, a rising tube, a condenser and a falling tube. Where liquid boils and a condenser, where vapor condenses back to liquid; riser and down comer connect these parts. The thermosiphon is a passive heat transfer device, which relies on gravity for the liquid return to the evaporator. Heat is transferred as heat of vaporization from the evaporator to the condenser. It can be designed either as a single tube or as a closed loop. loop thermosiphon technology is the long distance and high power heat transfer capability. It can also handle two or more heat sources in one loop

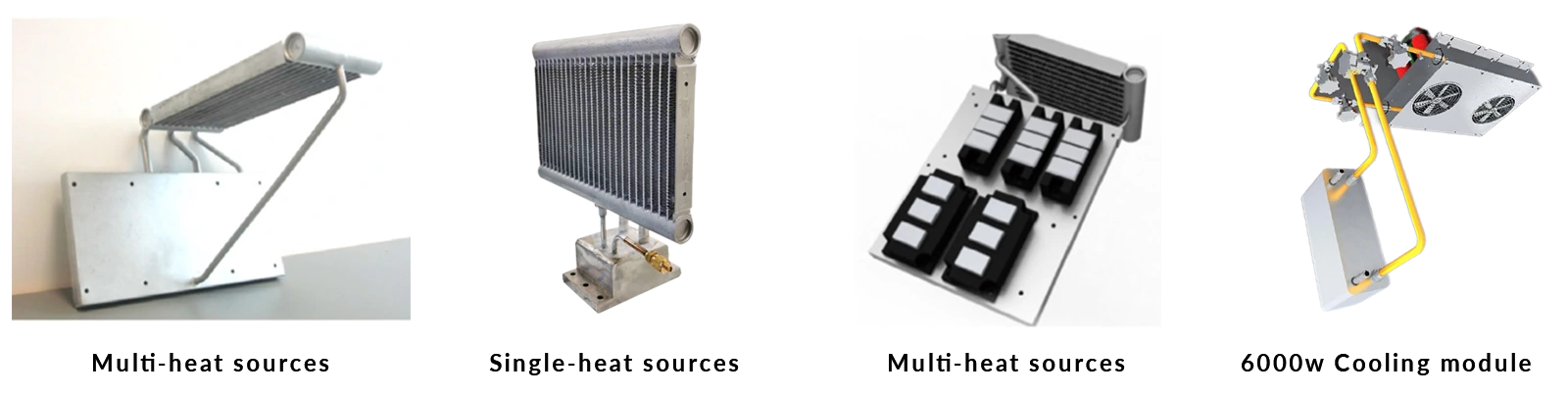

IGBT cooling (Customized products)
Thermosiphon Cooling Heat Sink Application Actual Operation
Unique Characteristics of Thermosiphon cooling Heat Sink
-
✓ Remote cooling loop-based technology
-
✓ Capable for outdoor use
-
✓ Power ranges typically 150~3,000 W/Evaporator
-
✓ Capable to move heat away without a mechanical pump and moving parts
-
✓ Handles multi-heat sources
-
✓ High efficient condenser with optimized fin pitch
-
✓ No pump design, higher reliability and low maintenance cost
-
✓ All materials are made of aluminum alloy, light weight and low cost
-
✓ Customized products
Major Application Fields
For more application details
These Companies Choose Us
Related Products
We focus on providing thermal management solutions and products with optimal performance and cost
Aluminum vapor chamber heat pipe
This technology is based on a flat heat pipe structure made of aluminum and enables efficient heat distribution at high power density. Depending on the design, it is also known by the following names: Flat heat pipes/micro-port extrusion (MPE)/thin planar heat pipes (heat spreaders)/micro flat aluminum heat pipe arrays Micro multi-channel flat heat pipes/flat micro heat pipe arrays Flat miniature heat pipes with micro capillary grooves
The heat is absorbed via the surface of the liquid cooling plate and dissipated via an internal channel system. Inside, there is a flow structure with an inlet and outlet, which is connected to an external pump and cooling circuit system via pipes. This allows the cooling medium to circulate continuously through the channels and efficiently transport the heat out of the system. The cooling plate is designed for use in a wide range of applications, including the automotive industry, where it is used to cool the engine compartment. It is also suitable for use in the food industry, where it is used to cool food products.
Heat transfer occurs purely passively via natural convection. The cooling medium circulates independently and completely without a mechanical pump. The closed circuit consists of four central components:an evaporator with an optimized boiling structure/a riser pipe/a condenser/and a downpipe.
3DVC radiator is a Micro channel flat heat pipe extended from the vapor chamber, connected to form a 3D vacuum body, and the fins are welded between the flat heat pipes.
