3DVC（Vapor Chamber） heat sink
Two phase change
vapor chamber
Attachment Download：
Product description
Introduction of 3DVC（Vapor Chamber） heat sink
3DVC production process
Taking the bottom plate VC + 4~12 heat pipes as an example, the manufacturing processes of 3DVC are also different according to the technical characteristics of different manufacturers and the molding methods of the cavity.
1>The bottom plate VC and the heat pipe are sintered, and then the heat pipe and VC are welded into a closed cavity by brazing or other methods. Then perform VC water injection, vacuuming and subsequent processes.
2> Weld the VC shell and the heat pipe shell into one body (use brazing or diffusion welding, or form an integral structure by stamping or extrusion), then sinter the inside, weld the upper and lower covers into a closed cavity, and proceed The subsequent water injection and vacuuming process.
Pressure-driven cooling can operate in earth, micro and hyper gravity, in any orientation
Why is 3DVC better?

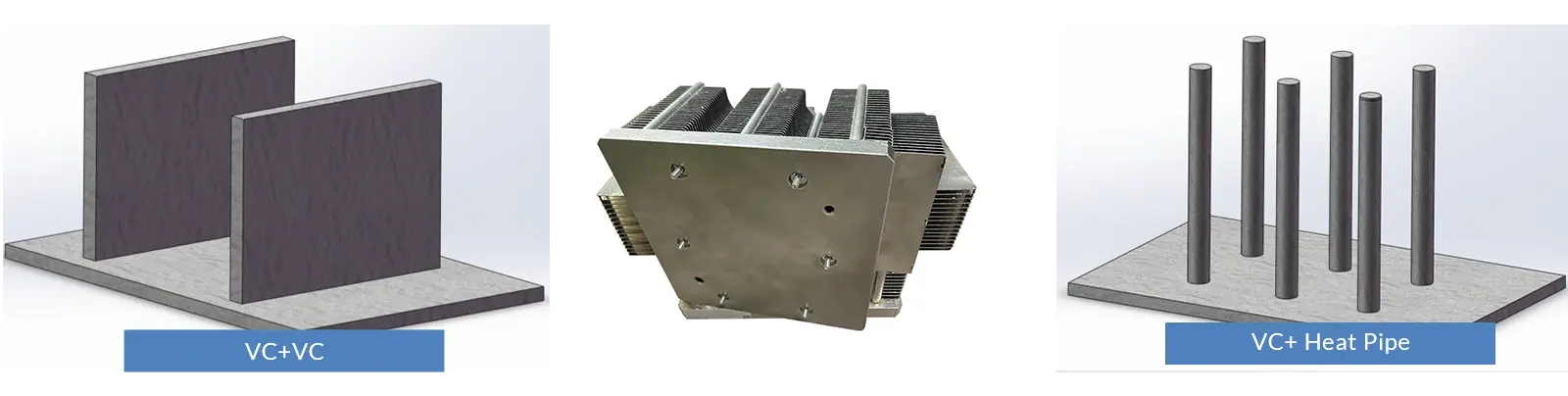

3DVC is not limited to the connection between vapor chambers and heat pipes, but can also be the connection between vapor chambers and vapor chambers.
3DVC heat sink Advantage
-
Simple structure, good adaptability, easy to install
-
Small size, heat dissipation capacity up to 800w
-
High heat transfer efficiency, phase change in 3D structured, small thermal resistance
-
The medium circulation system is more simplified, the total resistance is small.
-
No pump design, higher reliability and low maintenance cost
Major Application Fields
For more application details
These Companies Choose Us
Related Products
We focus on providing thermal management solutions and products with optimal performance and cost
Aluminum vapor chamber heat pipe
It is a Flat heat pipe. Also called: The Micro Port Extrusion (MPE)./ Thin planar heat pipes(heat spreader) / Micro Flat aluminum heat pipe arrays / Micro multi-channel flat heat pipe / Flat micro heat pipe arrays / Flat miniature heat pipe with micro capillary grooves
The heat to be dissipated is fastened to the surface of the liquid cooling plate. The inside of the liquid cooling plate is a flow channel structure with inlets and outlets, and is connected to the external liquid cooling pump circulation system through pipes. The heat absorbed by the liquid cooling plate is brought to an external heat dissipation device with a larger area and stronger performance through the circulation of the liquid for centralized heat dissipation. The cooled liquid flows back to the liquid cooling plate again to take away excess heat.
Thermosiphon cooling heat sink module involves four components in a loop: an evaporator with a boiling enhancement structure, a rising tube, a condenser and a falling tube.
3DVC radiator is a Micro channel flat heat pipe extended from the vapor chamber, connected to form a 3D vacuum body, and the fins are welded between the flat heat pipes.
